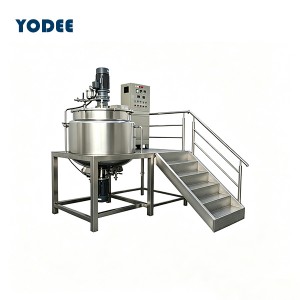

500L Stainless Steel Mixing Kettle with Electric Heating, Homogenizer, Stirring – CE

500L stainless steel mixing kettle with electric heating, high-shear homogenizer & stirring, CE certified. SUS304 body, 316L contact parts, jacket cooling, bottom discharge valve. Agitator 0-63rpm, homogenizer 0-2850rpm. Ideal for food, cosmetic & chemical processing.

Send email to us

Product Detail

Product Tags

Key Selling Points

1.Three-in-one processing + cooling in a 500 L vessel— Heating, stirring, homogenizing and jacket cooling in a single stainless steel tank, saving floor space and eliminating intermediate transfer between processes.

2.SUS304 body, 316L product-contact parts — Tank shell in SUS304 with all product-contact surfaces in SUS316L and smooth, easy-to-clean finish for hygiene-sensitive food and cosmetic processing.

3.Electric jacketed heating with cooling— Clean electric heating via the jacket, with jacket cooling by water/medium circulation for fast temperature control across the whole batch.

4.Full-range VFD speed control — Anchor agitator adjustable 0–63 rpm and high-shear homogenizer adjustable 0-2,850 rpm, matching products from low-viscosity liquids to thick pastes.

5.CE certified & customizable — CE certificate available; bottom discharge valve as standard, with vacuum, PLC touchscreen, CIP and tilting options on request.

Product Description

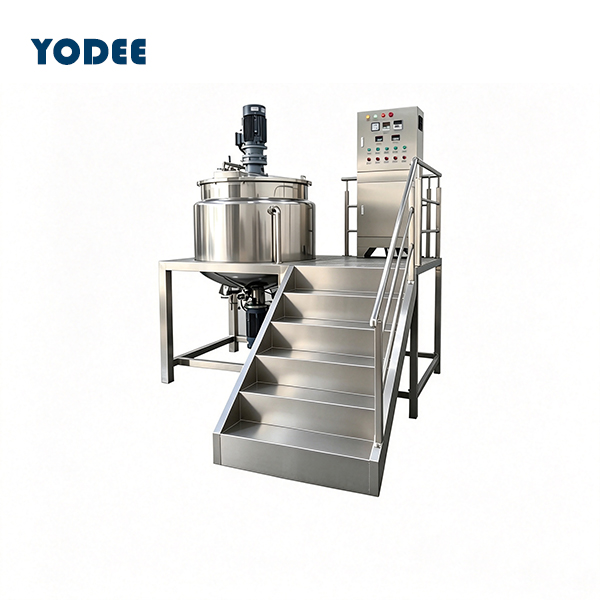

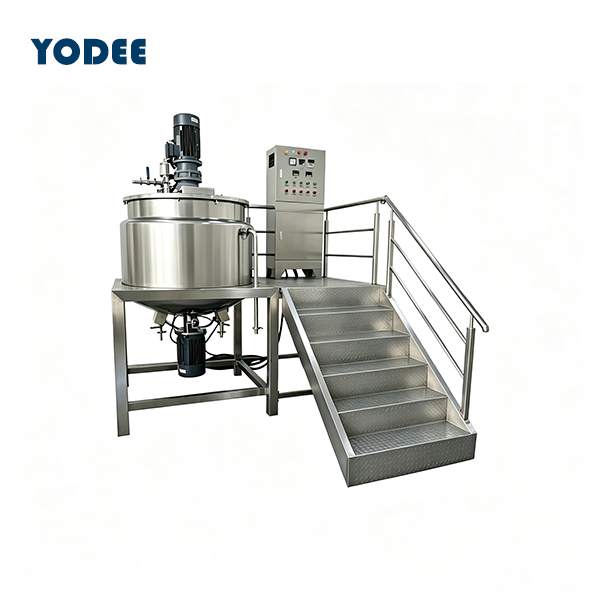

The 500L stainless steel mixing kettle is a compact, multi-function processing vessel combining electric heating, stirring, high-shear homogenizing and jacket cooling in one machine. It is widely used to cook, blend, dissolve, emulsify and cool medium- to high-viscosity products such as sauces, jams, creams, lotions, adhesives and liquid chemical preparations.

The tank shell is made of SUS304 stainless steel, while all product-contact parts are SUS316L for better corrosion resistance. A heating jacket around the lower shell raises the material temperature evenly through electric heating elements, and the same jacket can be switched to cooling by circulating cold water or medium. A variable-frequency drive (VFD) gives smooth control of both the anchor agitator (0-63 rpm) and the high-shear homogenizer (0-2,850 rpm), allowing gentle mixing or intensive emulsifying as the recipe requires. The bottom discharge valve drains the finished batch cleanly, and the machine is supplied with CE certification.

Designed for daily production and easy cleaning, the kettle can be further equipped with a vacuum system, PLC touchscreen control, CIP spray ball or tilting discharge, making it a flexible core unit for food, cosmetic, daily-chemical and chemical production lines.

Technical Specifications

Item	Specification
Working capacity	500L
Tank body material	SUS304 stainless steel
Product-contact material	SUS316L stainless steel
Heating system	Electric heating
Cooling system	Jacket cooling (water / medium circulation)
Agitator	Anchor agitator, VFD speed 0-63 rpm
Homogenizer	High-shear homogenizer, VFD speed 0-2,850 rpm
Discharge	Bottom discharge valve
Certification	CE
Temperature control	Digital display, ±1 °C accuracy
Power supply	380 V / 50 Hz / 3-phase

Features

● Stainless Steel Construction (SUS304 + 316L) One-piece welded tank shell in SUS304 with all product-contact parts (inner surfaces, agitator, homogenizer head, bottom valve) in SUS316L — corrosion-resistant, smooth and easy to clean, suitable for food and cosmetic hygiene requirements.

● Electric Heating + Jacket Cooling Electric heating elements heat the jacket evenly and cleanly without steam boilers or thermal-oil systems. By switching the jacket to cooling circulation (cold water or medium), the same vessel also cools the batch quickly after processing.

● Anchor Stirring 0–63 rpm The low-speed anchor agitator with wall-scraping blades continuously sweeps the tank wall and bottom, preventing burning, caking and dead zones — especially important for viscous products.

● High-Shear Homogenizing 0–2,850 rpm The high-speed rotor-stator homogenizer emulsifies, disperses and dissolves materials rapidly within the same vessel, producing fine and stable emulsions or suspensions without a second machine.

● Bottom Discharge Valve A sanitary bottom valve drains the finished batch by gravity with no residual dead angle, and supports quick rinsing and CIP cleaning.

● Flexible Control Manual push-button control with VFD speed adjustment as standard; PLC + touchscreen with recipe memory and process recording available on request.
