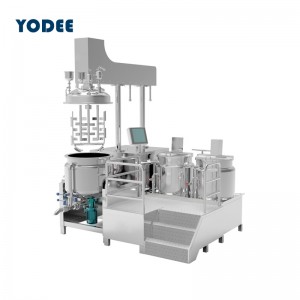

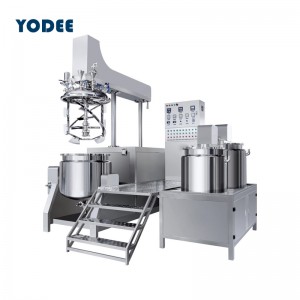

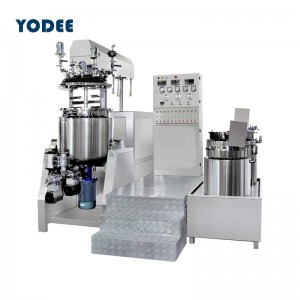

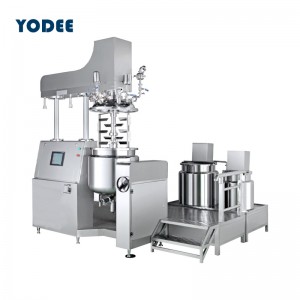

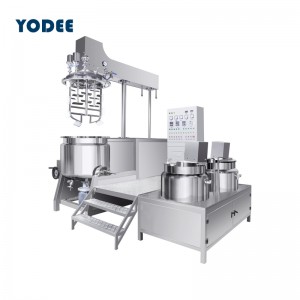

Vacuum emulsifying mayonnaise homogenizer mixer making machine

Vacuum Homogenizer Emulsifier is a complete system integrating mixing, dispersing, homogenizing, emulsification and powder suction. . The material is stirred through the center of the upper part of the emulsification pot, and the Teflon scraper always caters to the shape of the stirring pot, sweeping away the sticky material hanging on the wall, so that the scraped material continuously generates a new interface, and then goes through the shearing, compressing, Fold it to make it stir and mix and flow down to the homogenizer below the pot body. The material then passes through the strong shearing, impacting, turbulent flow and other processes generated between the high-speed rotating cutting wheel and the fixed cutting sleeve.

Product Detail

Product Tags


 It is cut in the shearing slit and quickly broken into particles of 200nm-2um. Since the emulsification tank is in a vacuum state, the bubbles generated during the stirring process of the material are removed in time. Vacuuming is used to prevent the products from being mixed with air bubbles during the stirring process, so as to ensure that high-quality products with luster, fineness and good ductility can be produced.


● Heating: Steam heating or electric heating.Electric heating is suitable for small-capacity machines, and steam heating is suitable for large-capacity machines. Compared with electric heating, steam heating can heat faster per unit time. It is convenient to add more equipment later to design an automatic control system.

● Stirring: Low-speed stirring 0-63r/min can quickly and evenly mix various raw materials.

● Homogenization: The high shear speed of 0-3300r/min can more efficiently dissolve oil and water to form high-quality products.

● Material suction: In the state of vacuum, liquid raw materials and powder raw materials can be quickly transferred to the container for production through the vacuum suction pipe.

● Vacuum: Make the container form a vacuum sterile environment, adding powder in the vacuum environment can avoid dust pollution and prevent material agglomeration.


Capacity Homogenizer Motor(KW) Stirring motor(KW) Vacuum pump(KW) water pot stirring(KW) oil pot stirring(KW) water pot heating(KW) oil pot heating(KW)
250L 5.5 2.2 1.5 0.55 0.55 12 9
300L 5.5 3 3 0.75 0.75 18 9
400L 7.5 4 3 0.75 0.75 18 9
500L 11 4 3 1.1 1.1 18 9
1000L 15 5.5 3.85 1.5 1.5 27 18
2000L 18.5 7.5 3.85 2.2 2.2 36 27
3000L 22 11 11 3 3
5000L 37.5 15 11 5.5 5.5

Optional System

● Button control/PLC color touch screen

● Cleaning spray ball/CIP system/SIP system

● Piping system (steam pipe / pure water pipe / tap water pipe / cooling water pipe / sewage pipe / air pipe)

● Remote control system
